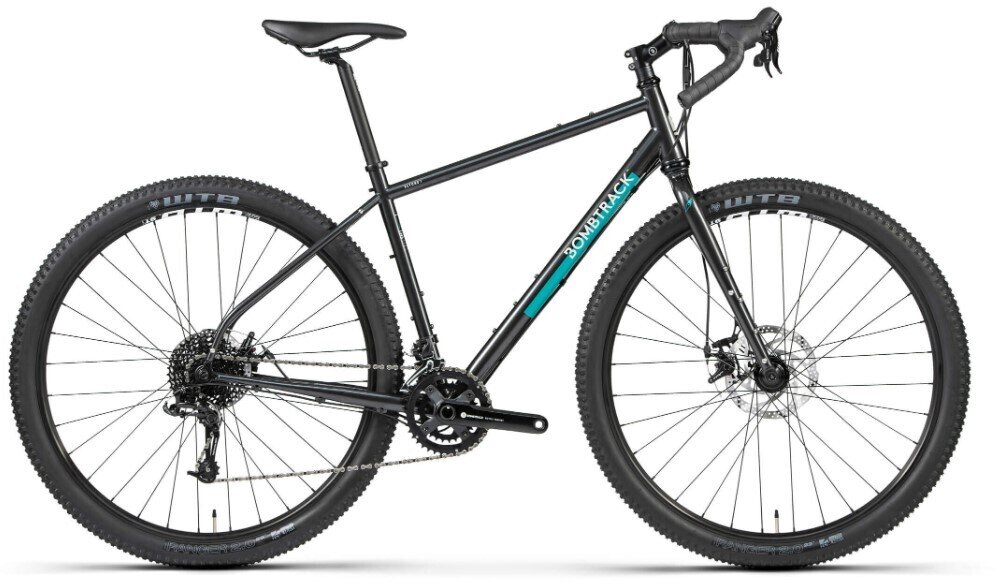

Bombtrack Bicycle Company Beyond 1
Details
"Made to cross countries and continents via all kinds of roads and trackways..."
The Beyond 1 serves as the perfect first bike for fledgling adventurists. With tyres as wide as a mountain bike accompanied by a 28 / 40T chainset, this bike will be able to reach wherever you’ve plotted on the map. Leverage-boosting bars provide added control, and an eye-watering selection of mounting points mean you won’t need to leave anything at home. Its simplicity makes it easy to service, too.
• Size XS and S will come with 27.5’’ wheels to ensure proper fit without any compromises in geometry
• Double butted crmo frame with tapered head tube, rack and fender mounts, BSA bottom bracket and rear light cable routing
• 4130 Cromo fork with internal light cable routing and fender, rack and triple cage mounts
• Bombtrack GRAD and ARC disc brake hubs with 15 and 12 mm through axles
• Sram Apex 2x10 levers with wide range gearing and Sram GX short cage rear derailleur
• TRP Spyre brakes with Jagwire KEB-SL compressionless cable housing
• Extra wide Bombtrack Beyond travel bar with 30° flare
• BB standard : BSA - 73 mm shell width
• Headset standard (S.H.I.S.) : EC34 / 28.6 | EC44 / 40
• Headset crown race angle : 45°
• Fork steerer inner diameter : 25.4 mm
• Fork max tire clearance w/o fender : XS - S 27.5'' x 2.1'' / M - XL 29'' x 2.1''
• Frame max tire clearance w/o fender : XS - S 27.5'' x 2.1'' / M - XL 29'' x 2.1''
• Maximum chainring clearance 1x : 36 T with 48 mm chainline
• Maximum chainring clearance 2x : 42 / 28 T with 49.5 mm chainline
• Seat post diameter : 27.2 mm
• Seat clamp diameter : 29.8 mm
• Front derailleur clamp diameter : 28.6 mm
• Brake mount front : PM
• Brake mount rear : FM
• Maximum rotor clearance front : 203 mm
• Maximum rotor clearance rear : 160 mm
• Front through axle : 15 mm x 100 mm, 1.5 thread pitch
• Rear through axle : 12 mm x 142 mm, 1.5 thread pitch
• ISO testing standard : MTB
• Crankarm : XS 165 mm / S - M 170 mm / L - XL 175 mm
• Q Factor : 179 mm
• BCD crank : 104 mm / 64 mm, 4 bolts
• Chainline : 49.5 mm
• Chainring offset : 0 mm
• Spoke length front wheel : XS - S 272 mm, 273 mm / M - XL 292 mm, 293 mm
• Spoke length rear wheel : XS - S 274 mm, 272 mm / M - XL 293 mm, 291 mm
• Spoke count (front / rear) : 32 / 32
• ERD : XS - S 570 mm / M - XL 606 mm
• Front hub PCD : 58 mm
• Rear hub PCD : 58 mm
• Front hub flange distance / offset : 56.5 mm center to center / 6.6 mm
• Rear hub flange distance / offset : 51 mm center to center / 8.8 mm
• Stem length : XS - S 60 mm / M - L 80 mm / XL 90 mm
• Stem angle : 17°
• Headset spacers : 1 x 10 mm, 2 x 5 mm, XL: 1 x 10 mm, 1 x 5 mm
• Seat post offset : 24 mm
• Seat post length : 415 mm
• Derailleur hanger : BT-DH-008
Specs
| Frame | 4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell |
|---|---|
| Fork | 4130 crmo, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing |
| Headset | Sealed external aheadset, 1.1/2'' - 1.1/8'' |
| Rims | WTB ST i23 double wall, TCS 2.0, 32h |
| Hubs | (F) BOMBTRACK GRAD sealed hub, 6-bolt disc (R) BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc |
| Tires | WTB RANGER TCS LIGHT / FAST ROLLING XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready |
| Crankset | BOMBTRACK AMES forged aluminum crank, 24 mm spindle |
| Chainwheel | Aluminum / Steel, 40 / 28 T |
| Bottom Bracket | BSA sealed BB, external cups |
| Chain | KMC X10 chain, 1/2'' x 11/128'', 114L |
| Front Derailleur | Microshift FD-M612-B |
| Rear Derailleur | SRAM GX, short cage |
| Rear Cogs | SRAM PG-1020 10-speed, 11 - 36 T |
| Shifters | SRAM Apex double tap 2 x 10 |
| Handlebars | BOMBTRACK BEYOND travel bar, 31.8 mm, 30° flare |
| Tape/Grips | BOMBTRACK COMMAND bar tape |
| Stem | BOMBTRACK WANDER forged aluminium stem, +17° |
| Brakes | TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors |
| Pedals | NA |
| Saddle | BOMBTRACK Fuzz |
| Seat Post | BOMBTRACK BEECH 27.2 mm x 415 mm |
| Seat Binder | BOMBTRACK ORIGIN 29.8 mm |
| Color(s) | Glossy Metallic Black |
| Sizes | XS, S, M, L, XL |
| Weight | 12.9 kg (size M) |
* Subject to change without notice.
Videos
Introducing the Bombtrack Beyond 1
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Glossy Metallic Black / X-Small | BOM41663202R | ||
| Glossy Metallic Black / Small | 4055822507844 | 01125120221 | BOM41338964R |
| Glossy Metallic Black / Medium | 4055822507851 | 01125120321 | BOM38273712K |
| Glossy Metallic Black / Large | 4055822507868 | 01125120421 | BOM38494164K |
| Glossy Metallic Black / X-Large | 4055822507875 | 01125120521 | BOM39724397K |
