Wolf Tooth B-Rad Mounting Base
Details

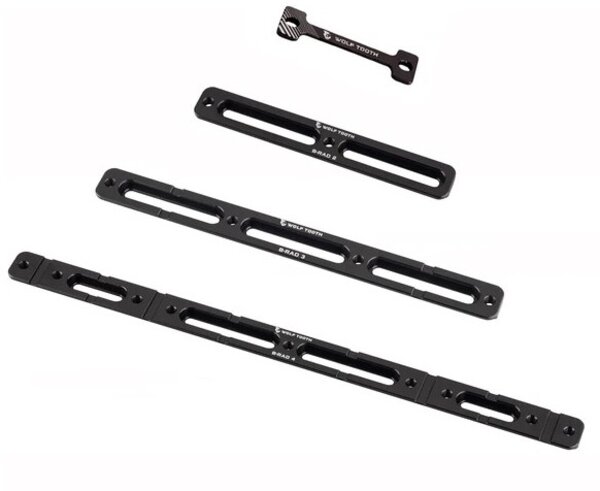

The B-RAD system begins with a series of slotted mounting bases. Available in a variety of sizes, B-RAD bases can shift a bottle cage away from inconvenient rear shocks, add room for tools or tubes below a bottle cage, or even provide space for a second bottle on sufficiently-long down tubes.
Bases are the foundation for the B-RAD system and the rest of the B-RAD system mounts to them. Reposition bottle cages using existing bottle cage mounts on your bike. Lightweight, durable and made from rust-proof materials, these flexible B-RAD system bases allow you to customize storage to your specific needs.
B-RAD 2
The 2-Slot Base can move bottle or other accessory to an optimal location even on a smaller or dual suspension frame.
B-RAD 3
The 3 slot base with 4 threaded holes provides additional adjustment and mounting options vs the B-RAD 2. A typical application would be to mount a bottle cage in the forward threaded holes with a B-RAD accessory tucked behind it. This mounts perfectly to triple bottle mounts on frames and forks. The B-RAD 3 includes a zip tie, channels for the zip tie, and a foam pad for secure mounting.
B-RAD 4
The 4 slot base is the longest base with 9 threaded holes for the ultimate flexibility and capacity when bike packing, touring, commuting or just exploring on 2 wheels. It's long enough to mount 2 small bottles inline or multiple accessories. The B-RAD 4 includes zip ties, channels for the zip ties, and a foam pad for secure mounting.
DOGBONE
The Dogbone can be used to offset a bottle or other accessory to an optimal location. Most commonly used for smaller, curved or dual suspension frames.
Tech Specs:
• Weight: B-RAD 2 • 27g | B-RAD 3 • 41g | B-RAD 4 • 75g | Dogbone • 10g
• Material: 6061-T6 aluminum brackets | EVA foam pad
• Torque: 3-4 Nm
• Max Load: 1700g per base
• Made in the USA
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
B-Rad 2 | 812719025782 | B-RAD-2 | |
B-Rad 3 | 812719025799 | B-RAD-3 | |
B-Rad 4 | 812719025805 | B-RAD-4 | |
Dogbone | 812719026857 | B-RAD-DOG | WOL24552323E |
