Trek Fuel EX C Gen 6 Frameset - 2025

Trek Fuel EX C Gen 6 Frameset
  • Color: Deep Smoke
  • Color: Mulsanne Blue
$4,999.99
Color:
Size: Select size
Wheel Size: Select wheel size
Please select options Unavailable
This item is not permitted to be shipped. However, it can be purchased online for in store pick up or our delivery service within Toronto.

Details

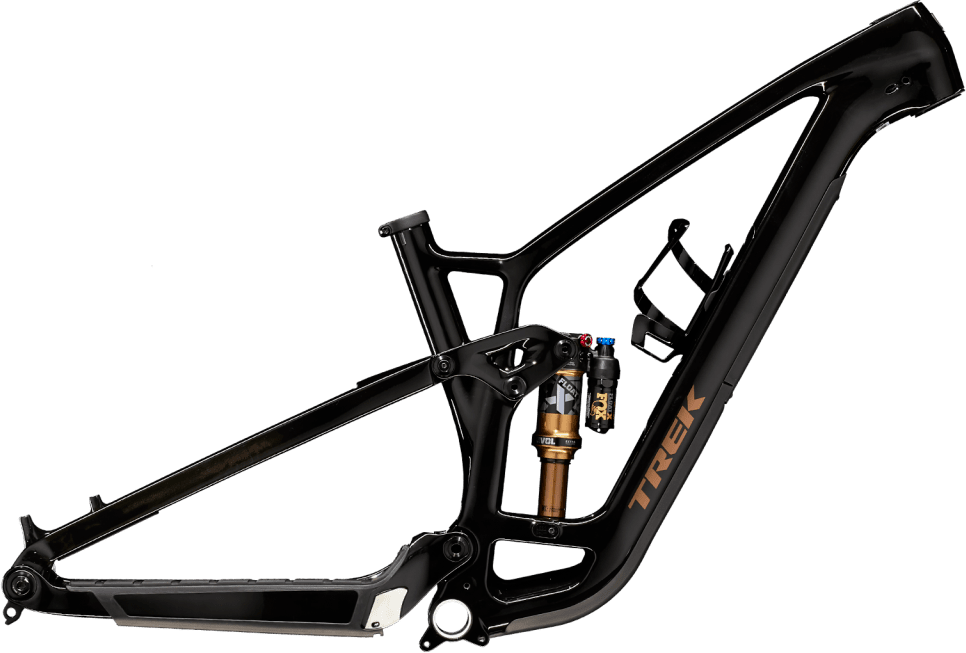

Fuel EX C Frameset is a light and ready frameset that's only limit is your imagination. It's constructed from lightweight, vibration-damping carbon fiber for a ride that's stiff where you want it and compliant where you don't. Its engineered for the trail with progressive geometry that stretches out the front-end for more control on descents, and gets steeper in the rear for better pedaling efficiency.


Geometry Chart:
XSS 27.5S 29MMLLXLXXL
A Wheelsize 27.5 27.5 29 29 29 29 29 29
B Frame Reach 400.2 430.2 425 450 470 485 515 545
C Effective Top Tube 516.2 550.5 553.8 584.1 607.4 626.9 661.8 696.6
D Seat Tube 360 380 380 410 420 435 470 500
E Seat Tube Angle 70.8 70.8 70.8 70.8 70.8 70.8 70.8 70.8
F Effective Seat Tube Angle 78.6 78.2 78.6 78.2 77.5 77.2 76.6 76
G Frame Stack 574.1 574.1 612.3 616.8 616.8 621.3 634.9 648.4
H Head Tube Length 95 95 95 100 100 105 120 135
I Head angle 64.5 64.5 64.5 64.5 64.5 64.5 64.5 64.5
J Fork Axle-To-Crown 533 533 561 561 561 561 561 561
K Bottom Bracket Height 332 332 335 335 335 335 335 335
L Bottom Bracket Drop 25 25 38 38 38 38 38 38
M Chainstay Length 435 435 435 435 440 440 445 450
N Wheelbase 1144.8 1174.8 1185.9 1213 1233.1 1250.2 1286.7 1323.2
O Standover 716.8 723.8 736.8 736.8 741.8 747.8 766.8 773.8
P Offset 44 44 44 44 44 44 44 44
Q Trail 121.6 121.6 129.2 129.2 129.2 129.3 129.3 129.3
Sizes:
SizeRider HeightInseam
XS

145 - 155 cm

4'9" - 5'1"

69 - 73 cm

27" - 29"
S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"
M

165 - 177 cm

5'5" - 5'10"

79 - 83 cm

31" - 33"
ML

173 - 180 cm

5'8" - 5'11"

81 - 86 cm

32" - 34"
L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"
XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"

Specs

Frame OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
Fork Fox Factory Float X, 2-position damper, 185mm x 55mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Deep Smoke / X-Small / 27.5-inch 601842792971 5279948
Deep Smoke / Small / 29-inch 601842793046 5279950
Deep Smoke / Medium / 29-inch 601842793060 5279951
Deep Smoke / Medium/Large / 29-inch 601842793084 5279952
Deep Smoke / X-Large / 29-inch 601842792896 5279954
Mulsanne Blue / X-Small / 27.5-inch 601842792995 5279955
Mulsanne Blue / Small / 27.5-inch 601842792957 5279956
Mulsanne Blue / Small / 29-inch 601842792940 5279957
Mulsanne Blue / Medium / 29-inch 601842793015 5279958
Mulsanne Blue / X-Large / 29-inch 601842793008 5279961
