Liv Rove E+

Liv Rove E+
  • Color: Laurel
$2,999.00
Color:
Laurel
Please select options
This item is not permitted to be shipped. However, it can be purchased online for in store pick up or our delivery service within Toronto.

Details

LET THE RELIABLE, POWER-ASSISTED PEDALING OF THE ROVE E+ LEAD YOU TO NEW DISCOVERIES.

KEY PERFORMANCE FACTORS

Accessibility
Explore new places, new roads, and new adventures with the 150 km* range of the reliable EnergyPak battery. The SyncDrive Core Motor delivers 50Nm of torque and has six-speed control settings, offering up to 300% pedal assistance.

*Actual range depends on several factors including weight, elevation, terrain, and acceleration.

Powered for Fun
The reliable EnergyPak 400Wh side-release battery is beautifully integrated into a lightweight and durable ALUXX SL-Grade aluminum frame for a bike that zips along on longer adventures.

Smooth Riding
SyncDrive motor technology smooths out bumps along the ride, and RideControl One on the handlebar provides easy access to select pedal assist functions and view battery levels.

HIGHLIGHTS

ALUXX SL-GRADE ALUMINUM
The state-of-the-art aluminum material delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride.

SYNCDRIVE CORE MOTOR
With 50Nm of torque, powered by Yamaha, the SyncDrive Core motor offers powerful pedal assistance with a natural riding feel.

SMART ASSIST
With Smart Assist you can enjoy seamless acceleration and power boost. The Smart Assist Technology system replicates a natural riding style, using the six sensors to add assistance exactly when needed.

RIDECONTROL ONE
Handlebar-mounted control system makes it easy to select your level of assist and view battery levels.

LOW STAND-OVER HEIGHT
Step-through design makes it easy to get on and off the bike.

ADVENTURE READY
Wider tires for traction and stability, hydraulic disc brakes for excellent braking power, and front suspension to smooth out bumps.

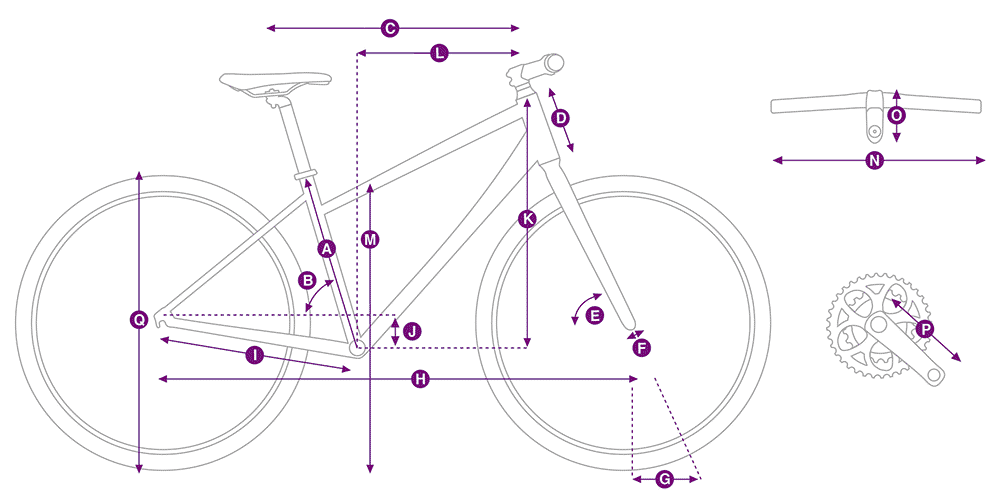

Geometry

Geometry Chart:
X-SmallSmallMediumLarge
A SEAT TUBE LENGTH (mm) 370 420 470 520
B SEAT TUBE ANGLE 74.0° 73.5° 73.5° 73.0°
C TOP TUBE LENGTH (mm) 545 565 585 605
D HEAD TUBE LENGTH (mm) 135 135 155 175
E HEAD TUBE ANGLE 69.5° 69.5° 69.5° 69.5°
F FORK RAKE (mm) 42 42 42 42
G TRAIL (mm) 91.3 91.3 91.3 91.3
H WHEELBASE (mm) 1097 1111 1133 1148
I CHAIN STAY LENGTH (mm) 470 470 470 470
J BOTTOM BRACKET DROP (mm) 60 60 60 60
K STACK (mm) 619 619 638 657
L REACH (mm) 367 382 396 406
M STAND OVER HEIGHT (mm) 616 596 584 570
N HANDLEBAR WIDTH (mm) 620 620 640 640
O STEM LENGTH (mm) 70 80 80 90
P CRANK LENGTH (mm) 170 170 170 170
Q WHEEL SIZE 700C 700C 700C 700C
Sizes:
X-Small 4’11" 5’4"
Small 5’2" 5’7"
Medium 5'5" to 5'9"
Large 5’7" 6’0"

Specs

Frame ALUXX Aluminum, Overdrive 1½ - 1?" head tube, integrated KS18 kickstand mount
Fork SR Suntour NEX E25 63mm travel
Rims Liv GX03V, 700C Aluminium
Hubs Giant eTracker, [F] 100x9mm QR [R] 135mm QR
Spokes Stainless steel
Tires Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready W/O Reflex (GU: w/reflex)
Crankset Forged Alloy minimal Q-factor, 42T
Shifters Shimano Altus, 1x9 **some bikes may be substituted: microSHIFT Advent Trail M9295, 1x9
Rear Derailleur Shimano Alivio **some bikes may be substituted: microSHIFT Advent M6195M
Cassette/Freewheel Shimano CS-HG200, 11x36T **some bikes may be substituted: microSHIFT Advent CS-EH093, 11x42
Chain KMC e.9 Sport, e-bike optimized
Brakes Tektro HD-M275, hydraulic disc, 160/180mm
Brake Levers Tektro HD-M275
Handlebars Giant Connect Riser
Tape/Grips Liv Comfort Ergo Microtech Plus
Stem Giant Contact
Seatpost Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Saddle Liv Comfort
Pedals Sold separately
Motor SyncDrive Core, 50Nm, Power by Yamaha
Battery EnergyPak 400, 36V 11.6Ah Rechargeable Lithium-Ion
Controller/Display RideControl One Ant+

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Laurel / X-Small 04712878709140 2203708153 22R20786935L
Laurel / Small 04712878709157 2203708154 22R19683346L
Laurel / Medium 04712878709164 2203708155 22R19206943L
Laurel / Large 04712878709171 2203708157 22R19661168L
