Kona El Kahuna SUV

Kona El Kahuna SUV
  • Color: Gloss Metallic Green
  • Color: Gloss Metallic Green
  • Color: Gloss Metallic Green
  • Color: Gloss Metallic Green
  • Color: Gloss Metallic Green
  • Color: Gloss Metallic Green
  • Color: Gloss Metallic Green
  • Color: Gloss Metallic Green
  • Color: Gloss Metallic Green
  • Color: Gloss Metallic Green
  • Color: Gloss Metallic Green
$3,999.99 - $4,799.99
Gloss Metallic Green
Please select options
This item is not permitted to be shipped. However, it can be purchased online for in store pick up or our delivery service within Toronto.

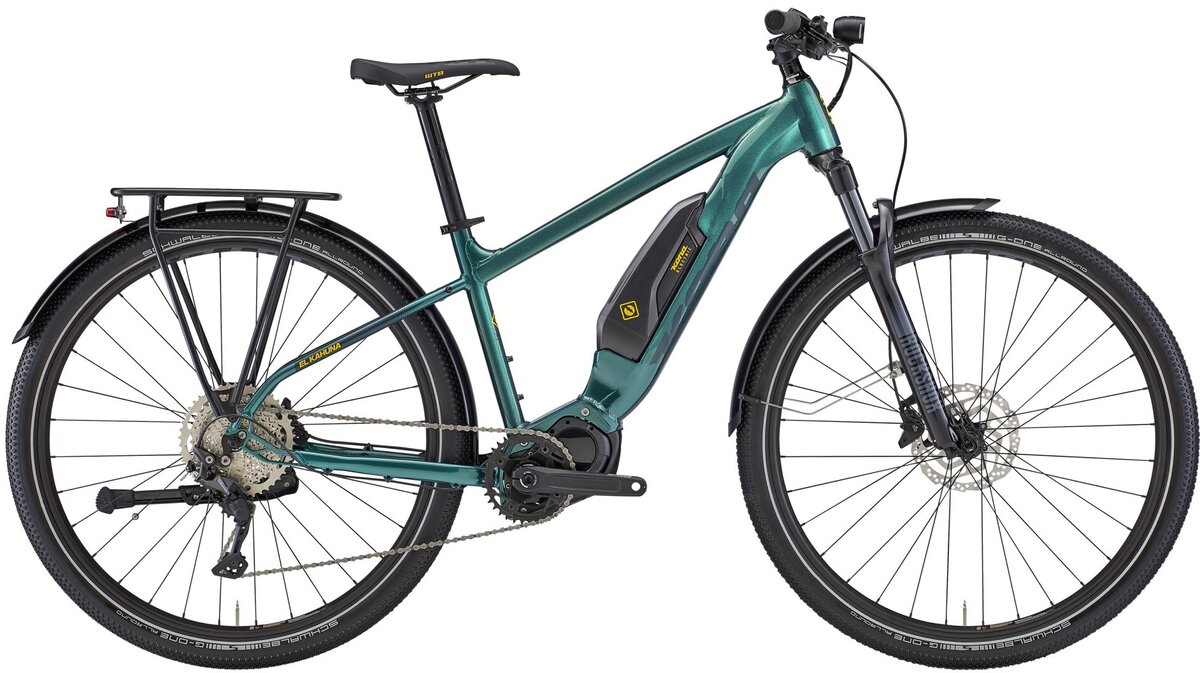

For those that love the idea of carrying gear with the assistance of an e-MTB the El Kahuna SUV is the answer! Like its sibling, the El Kahuna, the SUV features a sturdy aluminum frame and 29” wheels. The big differences are the addition of front and rear lights, and a rear rack which is integrated with a fender keeping you cleaner while you carry that camping gear up that big gravel road or commute to work. A 100mm fork smooths out the bumps, and powerful disc brakes keep you in control while you rally around the campground’s gravel trails and singletrack.

Kona 7005 and 6061 Aluminum alloys are used extensively throughout our fleet of mountain and asphalt bicycles. A tough, durable, light alloy, both Kona 7005 and 6061 deliver fantastic, reliable performance that lasts for thousands of rides. Much of our 7005/6061 tubing is butted and/or formed, meaning the tubing's wall thickness can be increased or decreased, as well as shaped, so we can fine-tune a particular frame's strength and ride characteristics depending on its intended application.

Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.

More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it's needed.

Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.

Geometry Chart:
Frame SizeSmallMediumLargeX-Large
Seat Tube Length (mm) 370 420 470 530
Top Tube Length (mm) 581 607 633 665
Reach (mm) 404 428 453 484
Stack (mm) 619 623 628 633
Standover (mm) 738 742 747 766
Head Tube Angle 69° 69° 69° 69°
Head Tube Length (mm) 110 115 120 125
Seat Tube Angle 74° 74° 74° 74°
Chainstay Length (mm) 465 465 465 465
Bottom Bracket Drop (mm) 60 60 60 60
Bottom Bracket Height (mm) 315 315 315 315
Wheelbase (mm) 1134 1160 1187 1220
Front Center (mm) 676 701 728 761
Fork Length (mm) 506 506 506 506
Fork Offset (mm) 51 51 51 51
Frame SizeHeight (inches)Height (cm)Inseam (inches)Inseam (cm)
X-Small 4'10"-5'1" 147-155cm 24"-27" 61-69cm
Small 5'0"-5'3" 152-160cm 26"-29" 66-74cm
Small, Medium 5'2"-5'7" 157-170cm 27"-30" 69-76cm
Medium 5'6"-5'10" 168-178cm 29"-31" 74-79cm
Medium, Large 5'9"-6'0" 175-183cm 30"-33" 76-84cm
Large, X-Large 5'11"-6'2" 180-188cm 32"-35" 81-89cm
Large, X-Large 6'1"-6'5" 185-196cm 33"-36" 84-91cm


Frame Kona 6061 Aluminum Butted
Fork Rockshox 35 Silver R Air 100mm Tapered 110 Spacing
Rims WTB ST i27 TCS 2.0
Hubs Front: Shimano 110x15mm
Rear: Shimano 135x10mm
Spokes Stainless 14g
Tires Schwalbe G-One Allround 29x2.25"
Crankset FSA E-Bike
Chainrings 36t
Shifters Shimano Deore
Rear Derailleur Shimano Deore
Cassette/Freewheel Shimano Deore 11-46t 10spd
Chain Shimano HG54
Brakes Shimano MT410
Rotors Front: Shimano RT10 180mm (centerlock)
Rear: Shimano RT10 160mm (centerlock)
Brake Levers Shimano MT4100
Handlebars Kona XC/BC Riser
Tape/Grips Kona Key Grip
Stem Kona XC
Headset FSA No.57BP
Seatpost Kona Thumb w/Offset 31.6mm
Saddle WTB Volt
Pedals Kona JS2
Accessories & Extras Rear Rack, Fenders, Busch & Müller Front & Rear Lights & Kickstand
Motor Shimano E6100 20MPH
Battery Shimano 630Wh
Controller/Display Shimano SC-E7000 Display
Charger Shimano STEPS 2A

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Metallic Green / Small 841073146147 B22EKHS01 KON17731382M
Gloss Metallic Green / Medium 841073146154 B22EKHS03 KON17103005D
Gloss Metallic Green / Large 841073146161 B22EKHS05 KON17635019G
Gloss Metallic Green / X-Large 841073146178 B22EKHS06 KON17541012L
