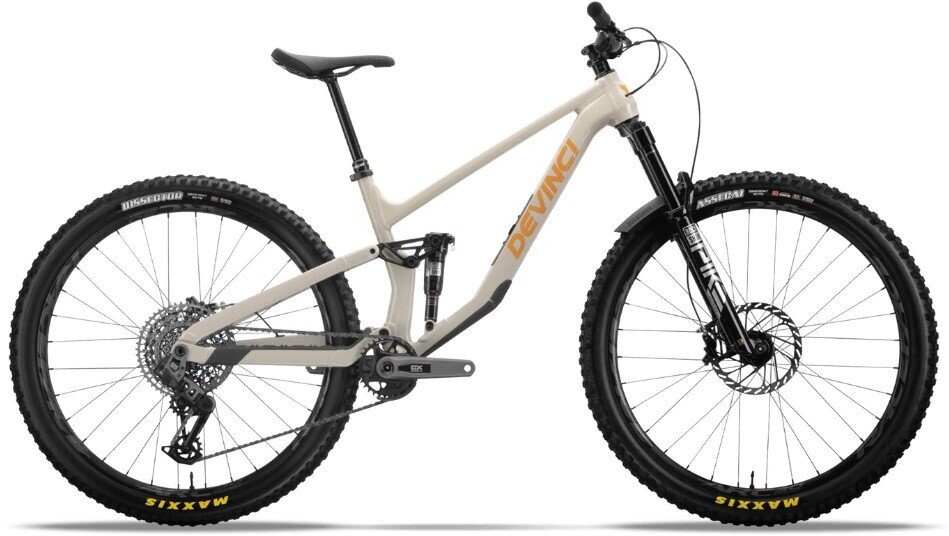

Devinci Troy ST GX AXS
Details
Lightning with a bottle cage.
The new Troy ST is the black belt in the Troy family. Insanely agile, the 130mm travel Split Pivot frame has updated geometry with size-specific chainstays that will have you riding stuff you thought you wouldn’t, fast. Its integrated downtube storage and go get ‘em attitude will lure you into all day rides on “once a year” trails, weekly. Full 29 in M-XL sizes and full 27.5 in XS-S, the ST isn’t trying to be anything it’s not. It’s made in Canada, guaranteed for life and ready to rumble. This bike is proof that with travel, sometimes less is more.
GEO-SAVER MULLET FLIP CHIP
The flip chip allows for the use of either a 27.5'' or 29'' rear wheel without altering the bike's geometry.
SHED STORAGE SYSTEM
Never leave your must-haves at home again. The all-new in-frame storage system lets you bring everything you need on every ride without having to carry it on your back. The Shed storage system lets you store tubes, tools, and snacks in your frame.
THREADED BB
Threaded BB for headache-free removal and easy maintenance.
OPTIMUM G04 6061-T6 ALUMINUM FRAME
Made from 6061-T6 aluminum tubesets for superior durability, incredible stiffness, and a knockout strength-to-weight ratio exclusive to Devinci bikes. The Optimum G04 designation appears on our high-end mountain bikes and electric mountain bikes.
MADE IN CANADA FRAME
Proudly made here. Each frame that bears our Made in Canada stamp represents our commitment to quality and sustainability.
LIFETIME WARRANTY
The love of riding lasts a lifetime. Now your bike can too.
FRAME TECH SPECS:
• Rear travel : 130 mm
• Front travel :140 mm
• Rear tire clearance : 27,5'' x 2.6” / 29'' x 2.5''
• Rear hub spacing : 12 x 148 Boost
• Max & min chainring clearance : Max. 34T | Min. 28T
• Chainline : 55 mm
• Derailleur hanger : UDH™
• Caliper mount : 200 mm Post Mount
• Seat tube diameter : 31.6 mm ID / 34.9 mm OD
• Seatpost max insertion : XS - 235 mm / S - 265 mm / M - 280 mm / L - 305 mm / XL - 330 mm
• Headset : Top ZS44 | Bottom ZS56
• Cable routing : Internal
• Rear shock dimension : Trunnion | 185 x 47.5 mm
• Rear shock hardware : Top: NA | Bottom: 40 x 10 mm
• Linkage bearing type : Enduro™ double-lip sealed
• Fork dimensions (Axle-to-Crown measurement/Offset) : 551 mm / 44 mm (M, L, XL)
533 mm / 37 mm (XS, S)
• Chain guide mount : ISCG 05 – 3-Bolt
• Frame material : Aluminum 6061-T6 | Optimum G04
Specs
| Frame | Aluminum 6061-T6 | Optimum G04 |
|---|---|
| Fork | RockShox Pike Ultimate Charger 3.1 RC2 | 140mm | 44 Offset |
| Headset | FSA Orbit | 1.5 | Zero Stack |
| Rear Shock | Rockshox Deluxe Ultimate 185x47.5 |
| Rims/Wheels | RaceFace ARC30 29 | 30mm inner | TR |
| Hubs | (F) RaceFace Vault | 6bolts | TA 15x110mm (R) RaceFace Vault | Boost148x12 | XD | 6bolts |
| Spokes | Sapim Stainless 14G w/Nylok |
| Tires | (F) Maxxis Assegai | 29x2.5WT | 3C | EXO | TR | MaxxTerra (R) Maxxis Dissector | 29x2.4WT | 3C | Exo | TR | MaxxTerra |
| Crankset | SRAM GX Eagle AXS | T-Type | 1Guard | Boost 148 |
| Chainwheel | 32T |
| Bottom Bracket | SRAM DUB 73mm Threaded |
| Chain | SRAM GX | T-Type | 12s |
| Rear Derailleur | SRAM GX Eagle AXS | T-Type | 12s |
| Rear Cogs | SRAM XS1275 | T-TYPE | 12s | 10-52T |
| Shifters | SRAM AXS POD | 12s |
| Handlebars | RaceFace Next R35 | B:35mm | R:20mm | W:800mm |
| Tape/Grips | SDG Tellis 31.6mm |
| Stem | RaceFace Turbine R35 | B:35mm | L:40mm | 0° |
| Brake Levers | SRAM Level Silver |
| Brakes | SRAM Level Silver | 4 pistons |
| Saddle | SDG BELAIR 3.0 |
| Seat Post | SDG Tellis 31.6mm |
| Seat Binder | Alloy CNC | 34.9mm |
| Color(s) | Stone w/Orange |
| Sizes | XS, S, M, L, XL |
| Weight | (M) 15.40 kg / 33.95 lb |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Stone w/Orange / Large | 883385227176 | FV24081452 | DEV35174613E |
