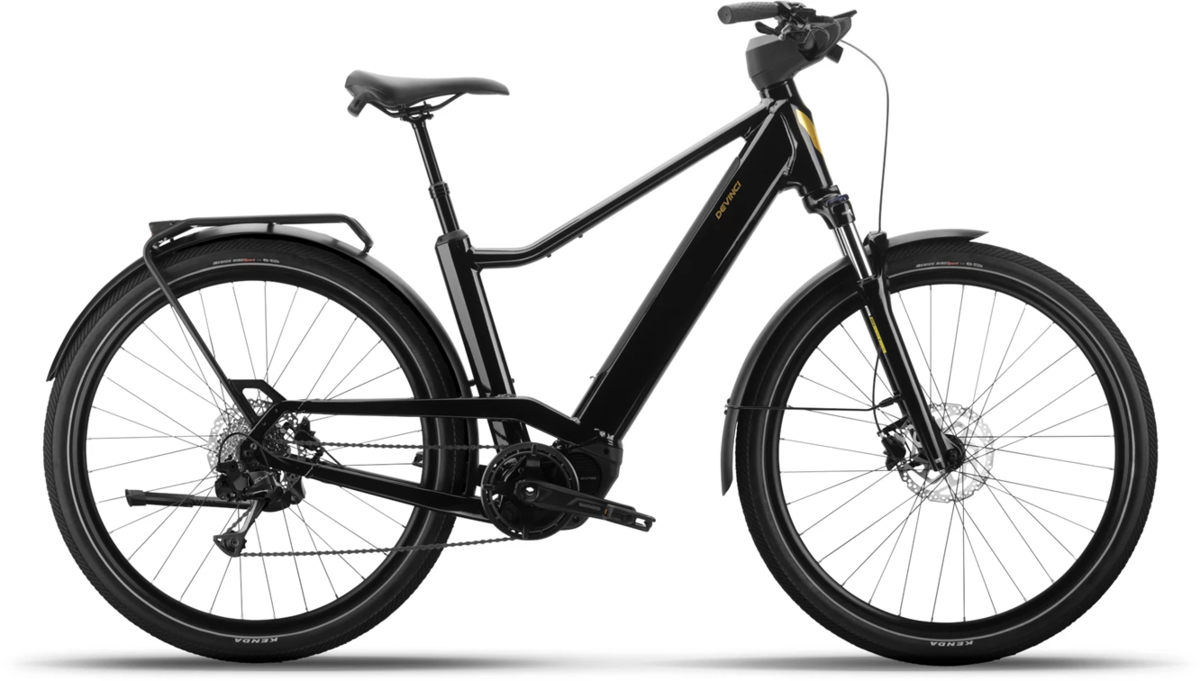

Devinci eGriffin EP6 9s
$3,369.99
$4,699.99
Details
The E-Griffin takes the guesswork out of city and leisure biking. It's built around a powerful Shimano Steps motor for reliable power on demand. No detail of the bike was overlooked. From the integrated handlebar display to the powerful hydraulic brakes,
and suspension fork, it's tailored to the needs and style of riding style. So you can ride often, with confidence.
| SIZE | Small | Medium | Large |
|---|---|---|---|
| A - Seat Tube (MM) | 400 | 460 | 525 |
| B - Seat Tube Angle (°) | 73 | 73 | 73 |
| C - Head Tube Angle (°) | 68 | 68 | 68 |
| D - Top Tube (MM) | 621 | 637 | 653 |
| E - Reach (MM) | 415 | 425 | 435 |
| F - Chain Stay (MM) | 480 | 480 | 480 |
| G - Wheelbase (MM) | 1181 | 1199 | 1216 |
| H - BB Height (MM) | | 295 | 295 | 290 |
| I - Standover Height (MM) | 665 | 718 | 770 |
| J - Stack (MM) | 671 | 689 | 708 |
| K - Head Tube (MM) | 170 | 190 | 210 |
| Rider Height (CM) | 152-168 | 168-180 | 180-193 |
| SIZE | Small | Medium | Large |
|---|---|---|---|
| CM | 152-168 | 168-180 | 180-193 |
| INCHES | 5' - 5'6" | 5'6" - 5'11" | 5'11" - 6'4" |
Specs
| Frame | Aluminum Optimum S03 |
|---|---|
| Fork | Suntour NVX30 NLO | 80mm |
| Rims | V2 Comp | 23mm inner |
| Hubs |
Front: Formula Disc sealed Rear: Formula EHL-135S | Sealed | 6bolts | 10x135mm | HG |
| Spokes | Stainless 14G |
| Tires | Kenda KwickNine | 29x2.2 | SRC |
| Crankset | Shimano STEPS CRET600 | 38T Single chain guard |
| Shifters | Shimano Cues U4000 | 9s |
| Rear Derailleur | Shimano Cues U4000 | 9s |
| Cassette/Freewheel | Shimano Cues 9s 11-41T |
| Chain | Shimano LG500 | 9/10/11s |
| Brakes | Shimano MT201/MT200 | 2 Pistons |
| Rotors | Shimano RT26 | 180mm |
| Handlebars | V2 Comp |
| Tape/Grips | Velo Ergo Comfort |
| Stem | TranzX I-Alloy | B:31.8mm | 70mm | 7° |
| Headset | FSA Custom |
| Seatpost | TranzX Dropper 31.6mm 1xLever |
| Saddle | Devinci |
| Pedals | Wellgo C211DU |
| Accessories & Extras | Front & Rear Fender: Sunny Wheel |
| Motor | Shimano STEPS EP600 | 250W | 85Nm |
| Battery | BMZ Gen2 540Wh |
| Controller/Display | Shimano STEPS EN610 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Goldland / Small | 883385214954 | FE23073211 | EGR23413302D |
| Goldland / Medium | 883385214978 | FE23073311 | EGR23995263D |
| Goldland / Large | 883385214992 | FE23073411 | EGR23568721D |
