Details

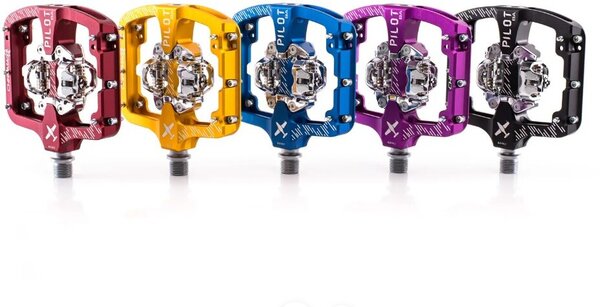

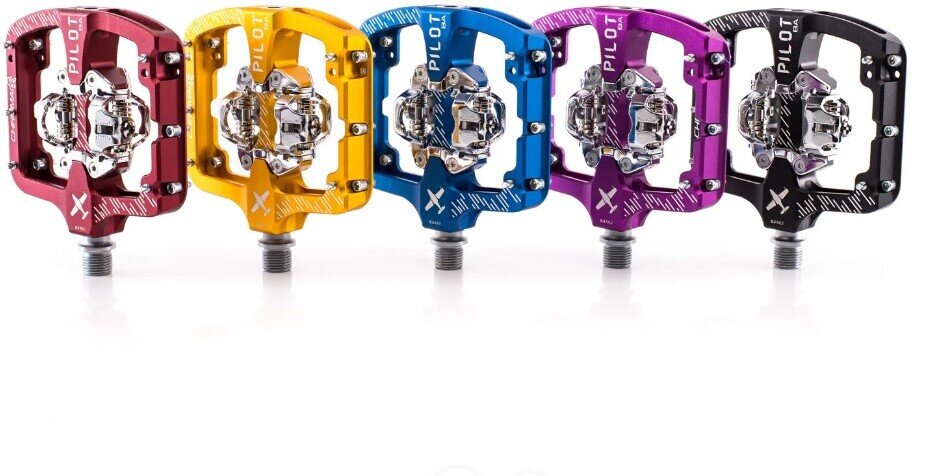

The Pilot BA is the union of Chromag's extensive flat pedal design combined with a proven, dual sided SPD compatible cleat engagement system. With a long, 110mm body, the Pilot BA's pins reach beyond the cleat channel of most shoes to provide a secure 5-point pin contact between shoe and pedal. The Pilot BA features our G.3 high-strength chromoly axle system, with a double seal, inner bushing, and outer cartridge bearing.
The Pilot BA is compatible with all 2-bolt SPD cleats.
SPECS:
• Pins: 10 / per pedal
• Platform: 105 x 110mm
• Stance: 60mm
• Release Angle: 12°
• Weight: 595g
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Black | 826974040695 | 180-003-001 | CHR27704698K |
Red | |||
Purple | |||
Blue | |||
Gold |
