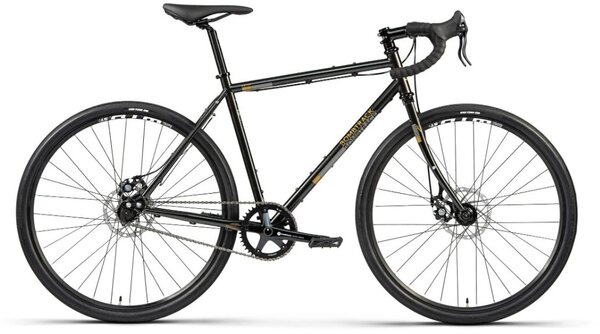

Bombtrack Bicycle Company Arise
Details
A simple and versatile bike, the Arise uses a single-speed drivetrain so you can focus on riding, not maintenance. The fast wheels, wide tyres, and flared bars mean there’s not much this bike cannot handle, from trails to commuting. Infinitely adaptable with fittings for mudguards and a rack, and you even have the option of converting the frame and hub to run an 11-speed drivetrain.
• Size XS and S will come with 650B wheels to ensure proper fit without any compromises in geometry
• Double butted crmo frame with sliding dropouts, internal light cable routing, rack and fender mounts
• Crmo fork with internal light cable routing, rack and fender mounts
• Jagwire KEB-SL compressionless cable housing
• 11 speed ready with derailleur hanger, cable guides and 11-speed freewheel hub body
• Narrow wide chainring for simple 1x conversion
• WTB ST tubeless ready rims
• Bombtrack ARC disc brake hubs with 12 mm through axles
BUILDS INFO:
• BB standard : BSA - 68 mm shell width
• Headset standard (S.H.I.S.) : EC34 / 28.6 | EC34 / 30
• Headset crown race angle : 45°
• Fork max tire clearance w/o fender : XS - S 650B x 42C / M - XL 700C x 42C
• Frame max tire clearance w/o fender : XS - S 650B x 42C / M - XL 700C x 42C*
• Maximum chainring clearance 1x : 44 T with 45 mm chainline
• Maximum chainring clearance 2x : 52 / 36 T with 45 mm chainline
• Seat post diameter : 27.2 mm
• Seat clamp diameter : 29.8 mm
• Brake mount front : PM
• Brake mount rear : PM
• Maximum rotor clearance front : 160 mm
• Maximum rotor clearance rear : 160 mm
• Front through axle : 12 mm x 100 mm, 1.5 thread pitch
• Rear through axle : 12 mm x 142 mm, 1.5 thread pitch
• Derailleur hanger : BT-DH-022
• ISO testing standard : Road
• Crankarm : XS 165 mm / S - M 170 mm / L - XL 175 mm
• Q Factor : 170 mm
• BCD crank : 130 mm, 5 bolts
• Chainline : 45 mm
• Spoke length front wheel : XS - S 273 mm, 274 mm / M - XL 292 mm, 293 mm
• Spoke length rear wheel : XS - S 272 mm, 274 mm / M - XL 291 mm, 293 mm
• Spoke count (front / rear) : 32 / 32
• ERD : XS - S 570 mm / M - XL 604 mm
• Front hub PCD : 58 mm
• Rear hub PCD : 58 mm
• Front hub flange distance / offset : 56.5 mm center to center / 6.6 mm
• Rear hub flange distance / offset : 51 mm center to center / 8.8 mm
• Stem length : XS - S 80 mm / M 90 mm / L - XL 100 mm
• Stem angle : -6°
• Headset spacers : 1 x 10 mm, 2 x 5 mm
• Seat post offset : 24 mm
• Seat post length : 300 mm
Specs
| Frame | 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell |
|---|---|
| Fork | 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing |
| Headset | NECO H282 sealed external aheadset, 1.1/8'' |
| Rims/Wheels | WTB ST i19 double wall, TCS 2.0, 32h |
| Hubs | (FRONT) BOMBTRACK ARC sealed hub, 6-bolt disc - (REAR) BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc |
| Tires | Size XS - S : VEE TIRE SPEEDSTER 38-584 & size M - XL : VEE TIRE SPEEDSTER 40-622 |
| Crankset | BOMBTRACK TAF19 aluminium crank, 24 mm spindle |
| Chainwheel | BOMBTRACK RIDGE aluminium chainring, narrow-wide, 42 T |
| Bottom Bracket | BSA sealed BB, external cups |
| Chain | KMC X8 chain, 1/2'' x 3/32'', 98L |
| Rear Cogs | 16 T heat treated crmo, 1/2'' x 3/32'' |
| Handlebars | BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare |
| Tape/Grips | BOMBTRACK CONTROL bar tape |
| Stem | BOMBTRACK ROAM forged aluminium stem, -7° |
| Brake Levers | TEKTRO RL-340 brake levers |
| Brakes | TEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors |
| Pedals | WELLGO B109N flat pedal |
| Saddle | BOMBTRACK FUZZ |
| Seat Post | BOMBTRACK BEECH aluminium seatpost, 27.2 mm x 315 mm |
| Seat Binder | BOMBTRACK ORIGIN forged aluminium seatclamp, 29.8 mm |
| Color(s) | Glossy Coffee Black |
| Weight | 11.4 kg (size M) |
* Subject to change without notice.
Videos
The Bombtrack Arise
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Glossy Coffee Black / X-Small | 4055822507288 | 01125010121 | ARI20534246E |
| Glossy Coffee Black / Small | 4055822507295 | 01125010221 | ARI19547302E |
| Glossy Coffee Black / Medium | 4055822507301 | 01125010321 | BOM35593104K |
| Glossy Coffee Black / Large | 4055822507318 | 01125010421 | BOM35219658K |
| Glossy Coffee Black / X-Large | 4055822507325 | 01125010521 | BOM36626028K |
